The TCL 1.5 Ton 18 T3B (also known as Miracle TAC-18T3B) is a full DC inverter split air conditioner with both heating and cooling functions. Key features and specifications are:
-
Cooling & Heating Capacity: 18,000 BTU/h each.
-
Inverter Technology: Full DC inverter with T3 rating, ensuring efficient operation even in high ambient temperatures.
-
Power Input: Cooling and heating input range from 300 to 2500 watts.
-
Running Current: Cooling current ranges from about 1.4 to 12.0 amps; heating current ranges about 1.4 to 13.0 amps.
-
Energy Efficiency Ratio (EER): Approximately 3.4 (w/w).
-
Airflow: Smart 4D/5D air flow with multiple fan speeds for uniform distribution.
-
Smart Features: Includes smart memory, smart learning ("I Feel" sensor), sleep mode, filter cleaning reminder, leakage detection, and auto-restart with memory resumption after power cuts.
-
Refrigerant: Eco-friendly R410a refrigerant.
-
Noise Levels: Indoor noise around 45-46 dB(A), outdoor noise about 49 dB(A).
-

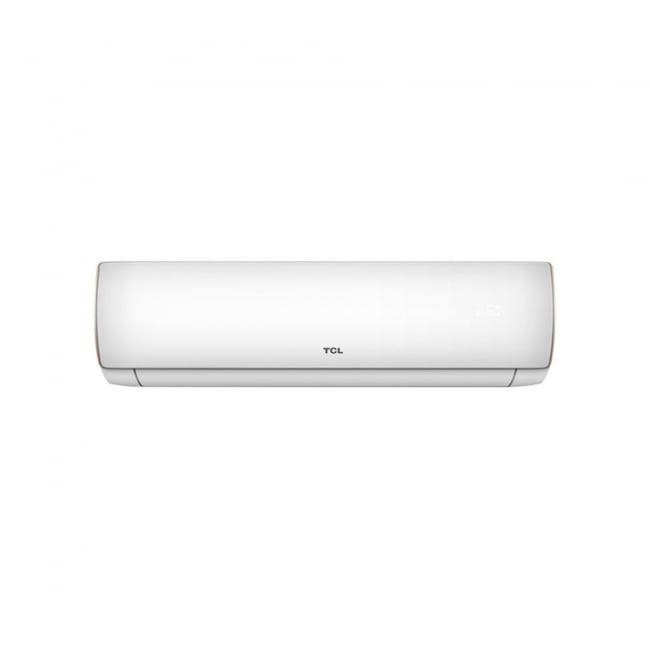

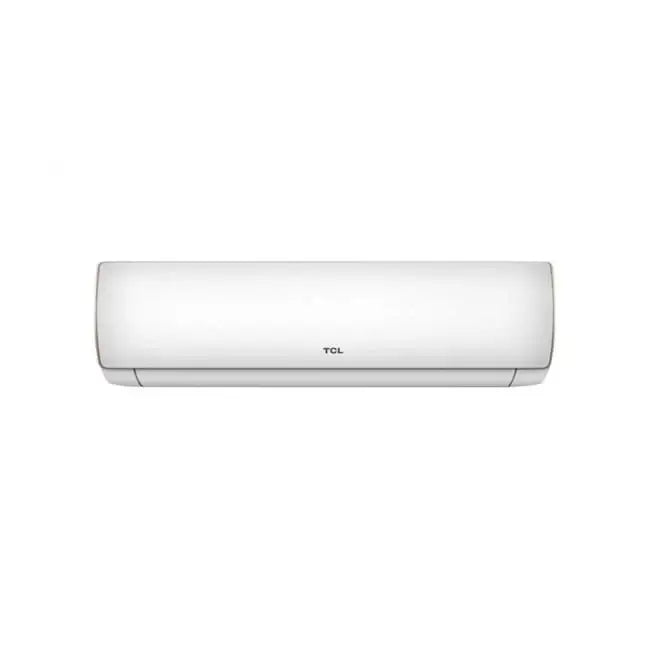

Design: White wall-mounted unit with a hidden LED display.
-
Dimensions & Weight:
-
Indoor Unit: Approximately 1202 x 402 x 302 mm, weighing about 14-15 kg
-
Outdoor Unit: Approximately 890 x 385 x 628 mm, weighing about 32 kg
-
-
Voltage: Rated for 220-240V, 50Hz with operation stable under fluctuating conditions.
-
Durability & Safety: Features fireproof control box, self-diagnosis, and safety designs for long-term reliable use.
