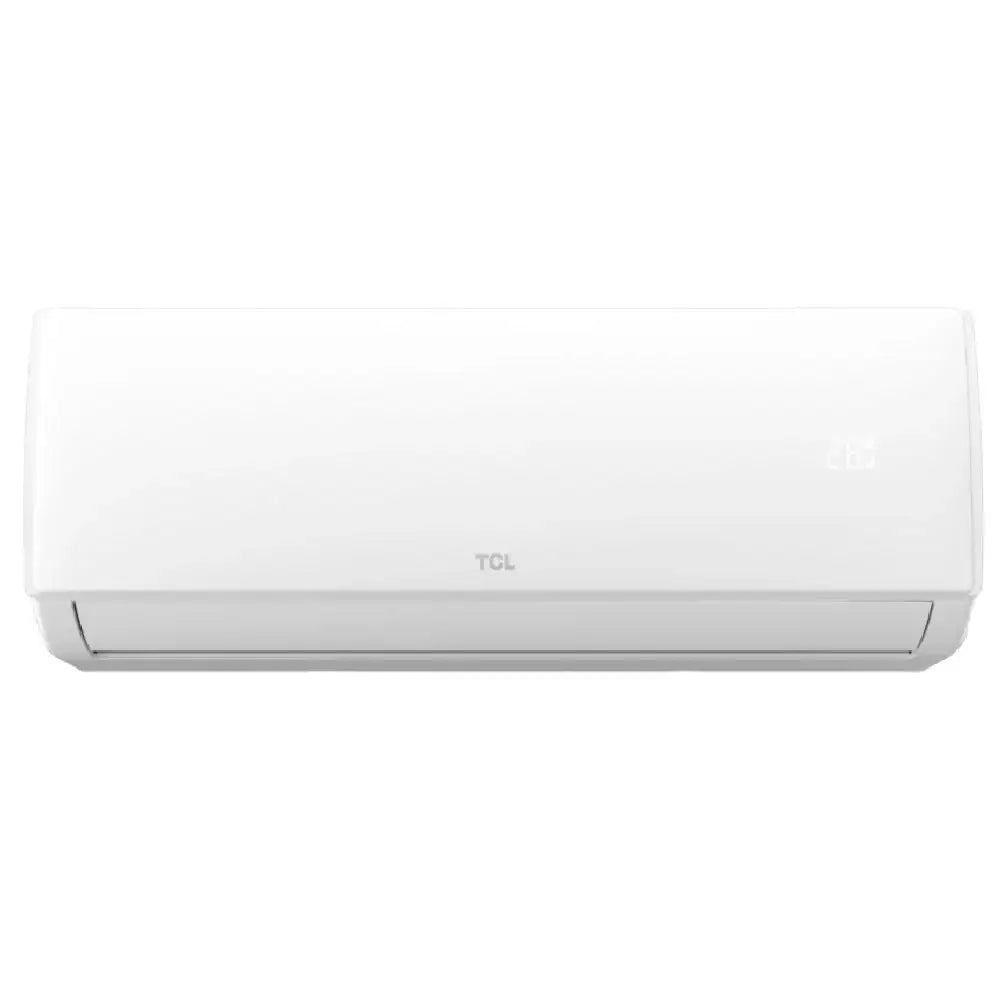

Tcl AC 1.5 Ton Inverter 18Hef-2

The?ÿTCL AC 1.5 Ton Inverter 18HEF-2?ÿ(Extreme Series) is a 1.5-ton DC inverter split air conditioner with both cooling and heating functions, designed for efficient, energy-saving, and reliable performance. Key features and specifications are:

• Cooling Capacity:?ÿ19,000 BTU.

• Heating Capacity:?ÿ20,000 BTU.

• Inverter Technology:?ÿUses a G-10 inverter chip for efficient power use, capable of saving up to 60% electricity.

• Power Input:?ÿ300 to 2,500 Watts (both cooling and heating).

• Running Current:?ÿ1.4 to 12 Amps for both cooling and heating.

• Energy Efficiency Ratio (EER):?ÿ3.20 (w/w).

• Refrigerant:?ÿEco-friendly R410a.

• Voltage Range:?ÿSupports rated voltage from approximately 155 to 265 V, suitable for fluctuating power supplies common in Pakistan.

• Noise Levels:?ÿIndoor noise around 48 dB(A), outdoor noise around 56 dB(A).

• Dimensions & Weight:

  • Indoor unit weighs about 9 to 13 kg (sources vary slightly).

  • Outdoor unit weighs about 28 to 34 kg with pipe.

  • Indoor unit dimensions approximately 1010 x 315 x 220 mm.

  • Outdoor unit dimensions around 853 x 349 x 602 mm.

• Special Features:

  • Filter cleaning reminder.

  • Refrigerant leakage detection.

  • Turbo mode for rapid cooling/heating.

  • Self-cleaning functionality.

  • Fireproof electric box for safety.

  • Gold Fin coating and T3 climate compatibility for efficient operation in extreme temperatures.

  • Smart airflow design with 3D air distribution.
